Architecture

Top  Previous  Next



ThinVNC Access Point is composed of a pure HTML5 based client connecting via HTTP/s to a server. The server could be ThinVNC FREE, ThinVNC PRO or any RDP server, including xRDP for Linux.



The web client connects to the listening port and displays the desktop using JSON and JPEG image encoding. The communication is authenticated using Digest method and the connection can be made through HTTP or HTTPS.

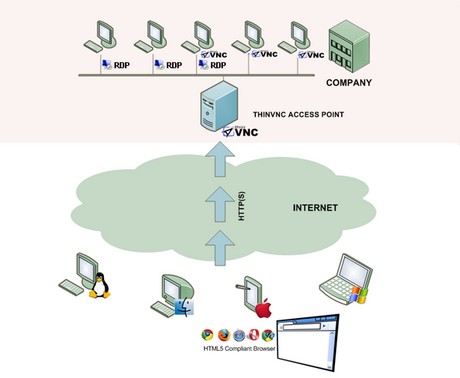

ThinVNC Access Point HTML5, Web-based RDP VNC Gateway remote desktop architecture

Requirements:



Server:

Any PC with Windows XP and up:



- Windows XP 32/64-bit

- Windows Vista 32/64-bit

- Windows 7 32/64-bit

- Windows Server 2008 32/64-bit



LAN PC:

- ThinVNC running on any PC with Wndows XP and up.

- For RDP access, any Windows PC with Remote Desktop service configured.

- Any Linux running XRDP or any other RDP server



Client:

Any PC, Chromebook, Mac, or tablet with a HTML5-Compliant Web Browser.

ie. IE 9, Google Chrome, Firefox, Safari, Opera, etc.
