Installing Thinfinity VirtualUI



1. Download the installer from the download page in the Cybele Software site:



http://www.cybelesoft.com/downloads/

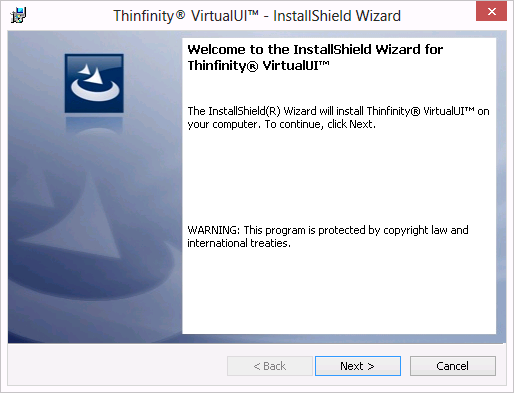

2. Execute the installer on the target machine.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Installation

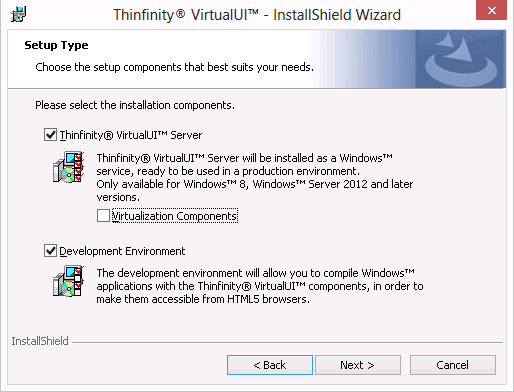

3. Select the environments to be installed:



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Setup Type Desktop Server Mode



Thinfinity VirtualUI Server



Thinfinity VirtualUI Server is an HTTPS/WebSocket Server that maintains the communication between your app and the web browser. Installing this environment will enable you to configure and run your adapted Windows apps.  This is not needed for development purposes but its installation is recommended for testing purposes.


On this installation mode, the Thinfinity VirtualUI Server will be installed as a Windows Service.



Development Environment



This environment is meant to be installed on the developer machine. This mode installs the Thinfinity VirtualUI SDK files that you will need to include or reference in your application's project. It includes also one Thinfinity VirtualUI Server that will execute in 'development' mode, to quickly test your application from a web browser.

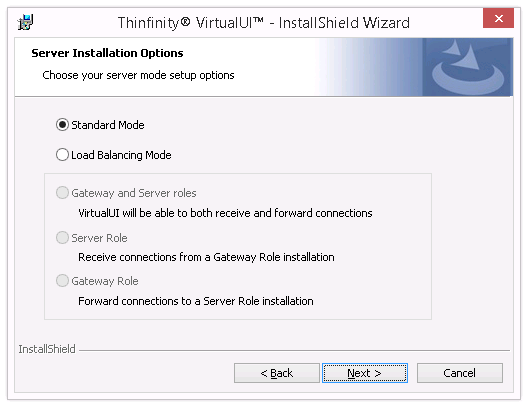

4. If you are installing the Server Environment, you will be presented with the following options:





Standard Mode



This is the default option. Choose this for a stand-alone installation, Thinfinity VirtualUI Server will centralize all the connections.



Load Balancing Mode



Choose this option to distribute the connection's load between several installations. Read more about Scaling and Load Balancing.

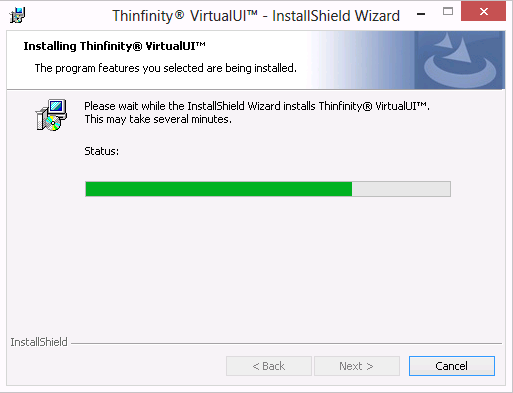

5. Press Next and wait for the installation process to finish. When it is done, press the 'Finish' button.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Installation
