Installing components



In this section you will learn how to set up Thinfinity VirtualUI's components in a load-balancing network configuration.

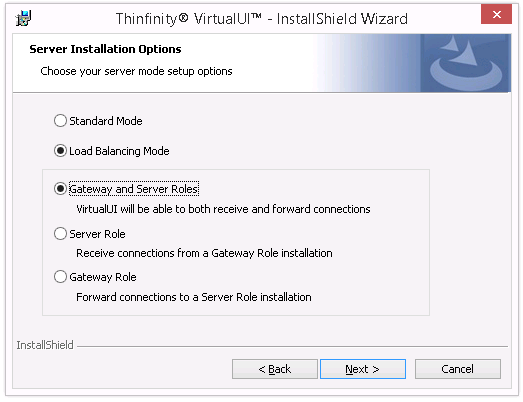

Choose the Load Balancing mode in the Server Installation Options screen:





Two or more servers will participate in the load balancing/fault-tolerance scenario. These are the two possible roles for an installation:



Gateway Role: Under this role, VirtualUI responds to all web-page requests and, when a connection is solicited, it selects the appropriate Server to forward that request to.

In case any established connection fails, or a Server falls down, the Gateway will be able to reconnect to the Server that has the highest availability at the moment.

All the system settings and profiles are centralized and shared between the Servers.



Server Role: Under this role, VirtualUI only processes forwarded connections. The Server is responsible for establishing and processing the connections assigned by the Gateway. A Server Role installation also includes the option to enable multiple RDS accounts.



Before configuring a distributed environment, you should go over some steps:



1. Choose out of the possible Scaling and Load Balancing Configurations the one that best fits your needs.

2. Plan which machines will work under the Server Role, and which under the Gateway Role and DNS Servers.

3. Make sure all the Gateway Roles IP addresses are public to the web browsers that will access Thinfinity® VirtualUI.



Read More:

Enabling Multiple RDS Accounts
Configuring Load Balancing
