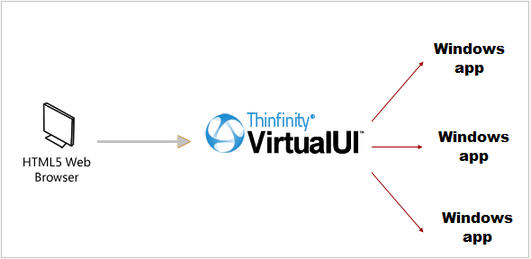

Architecture



Thinfinity VirtualUI is composed of:



Thinfinity VirtualUI Javascript Client, running on an HTML5-capable web browser
Thinfinity VirtualUI Server, running as a Windows Service
Thinfinity VirtualUI SDK dlls and/or source code files libraries referenced and/or included in your Windows application
Thinfinity VirtualUI Gateway, optional scaling and load balancing components.







Requirements:



Development Machine



Operating Systems:

 - Microsoft Windows 7 32­bit / 64­bit

 - Microsoft Windows 8 32­bit / 64­bit

 - Microsoft Windows 10

 - Microsoft Windows Server 2012

 - Microsoft Windows Server 2016



A development environment:

 - Microsoft Visual Studio

 - Delphi 5 to 10.1 Berlin

 - C++ Builder

 - Microsoft Visual Basic (including VB 6.0)

 - PowerBuilder

 - other

The application can use .NET WPF, GDI, GDI+ and limited DirectX calls.





Server and Gateway Machine



Windows 8 32-bit / 64-bit
Windows 10
Windows Server 2012 and 2012 R2
Windows Server 2016



End-User Machine



Any operating system and/or device with an HTML5-compliant web browser.
Any modern web browser (HTML5-­compliant) such as IE10/11, Chrome, Safari, Firefox, Opera, Edge, etc.
