Backup

Top  Previous  Next

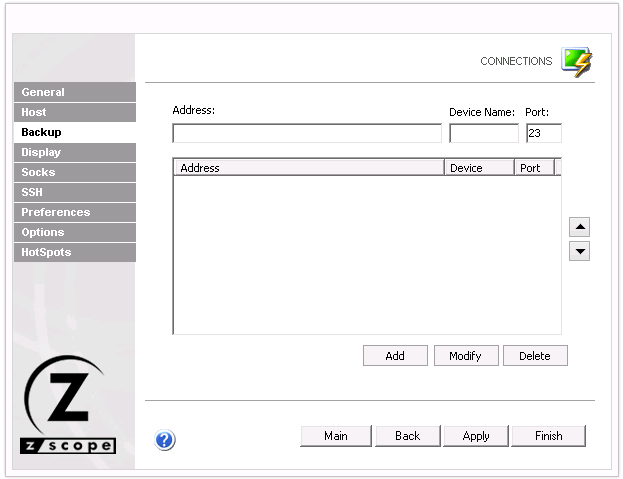

In the 'Backup' tab you will see a table showing the list of alternate hosts for the connection. If the connection fails, z/Scope will connect to an alternate host, starting with the first one in the list. If an alternate host fails, z/Scope will connect to the next one in the list.



To configure these settings you will find the following parameters:





Web-based HTML5 VT100 Unix Telnet Terminal Emulation Settings Backup Address Device Name Port





Address

Enter here the IP address of the alternate host you would like to add for this connection



Device Name

Enter here the Device Name with which you would like to connect to this alternate host.



Port

Enter here the port number for this alternate host.



Web-based HTML5 VT100 Unix Telnet Terminal Emulation Settings Backup Move Up Button

Move Up

Select a backup connection from the list and use this button to move it above other backup connections in the list.



Web-based HTML5 VT100 Unix Telnet Terminal Emulation Settings Backup Move Down Button

Move Down

Select a backup connection from the list and use this button to move it below other backup connections in the list.



Add

Press this button to add the Address, Device Name and Port information entered above as a new host in the list. New hosts will be added last in the list.



Modify

Select a backup connection from the list and press this button to replace the selected host with the information entered in the fields 'Address', 'Device Name' and 'Port'.



Delete

Select a backup connection from the list and press this button to delete it from the list.
