Display

Top  Previous  Next

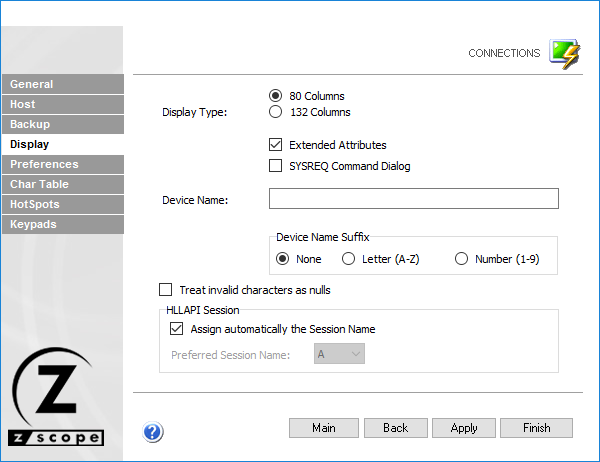

In the 'Display' tab you will find the following parameters:





Web-based HTML5 TN3270 TN5250 Terminal Emulation Settings Display Type 80 132 Columns Extended Attributed SYSREQ Command Dialog Device Name Suffix Invalid Characters Null HLLAPI Session Automatically





Display Type

Select the desired resolution for the host.



Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation Note



Available resolutions vary according to the type of host you are connecting to.



Extended Attributes

Enables extended attributes for the connection.



SYSREQ Command Dialog

Only for AS/400 connections: enables a command line for the SysReq function.



Device Name

Specifies the logical unit or device name for the connection.



Device Name Suffix

Allows you to specify a suffix method to use for several connections.
