Architecture

Top  Previous  Next

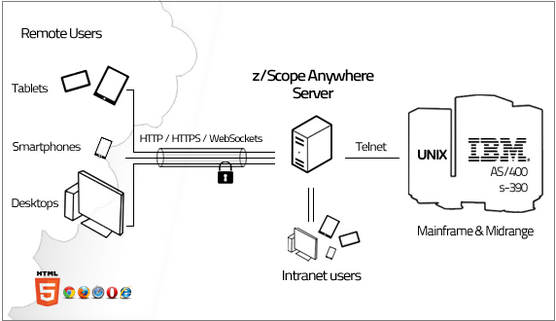

z/Scope Anywhere is based on a 3-tier architecture composed by:



The client:

 HTML5-capable Web Browser



The server:

 z/Scope Anywhere Server



The host:

 IBM Mainframe, Midrange or Unix system.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Architecture

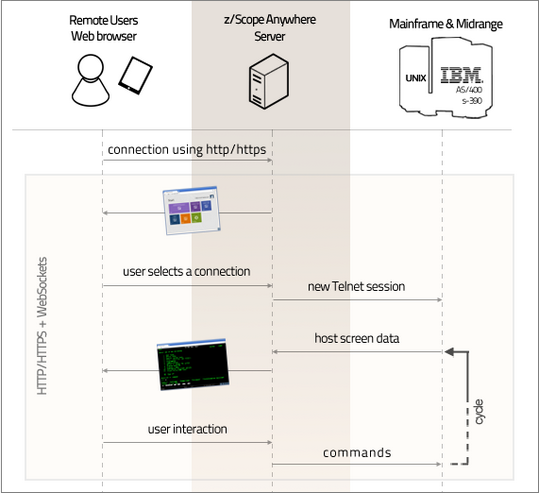

How it works



The remote user connects to the z/Scope Anywhere server using any HTML5 compliant browser. Once the connection is established the server will start interpreting commands to the specific host/protocol and sends back the results after converting the updated screens to native web structures.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Architecture





Load Balancing Architectures for z/Scope Anywhere



z/Scope Anywhere can be configured in two different load balancing architectures:

z/Scope Anywhere Load Balancer

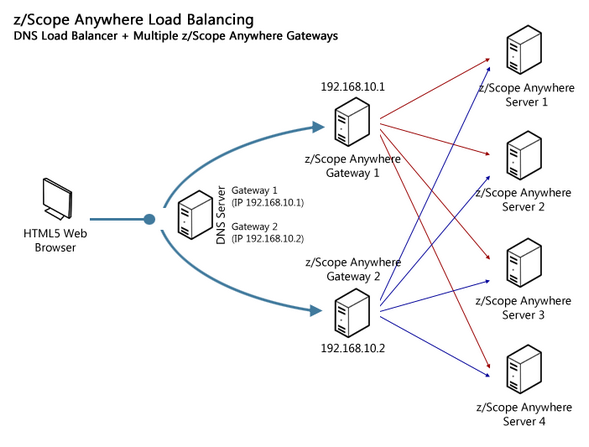

z/Scope Anywhere Load Balancer with a DNS for multiple brokers





Read more about load balancing.



Requirements



Client



OS independent
HTML5-compliant Web Browser



Server



Windows XP 32-bit / 64-bit
Windows Vista 32-bit / 64-bit
Windows 7 32-bit / 64-bit
Windows Server 2003 32-bit / 64-bit
Windows Server 2008 32-bit / 64-bit
Windows Server 2012 32-bit / 64-bit



Host



IBM Mainframe
AS/400
Unix
