Using an External Character Table

 Top  Previous  Next

After saving your own character table to a file, you can load it from within any connection. To do this, follow these steps:

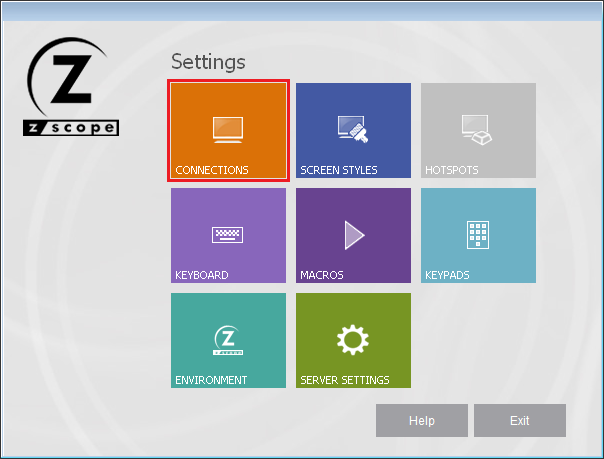

1. Go to the 'Settings' dialog and click on the 'Connections' icon.





Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation External Character Table Settings Connections

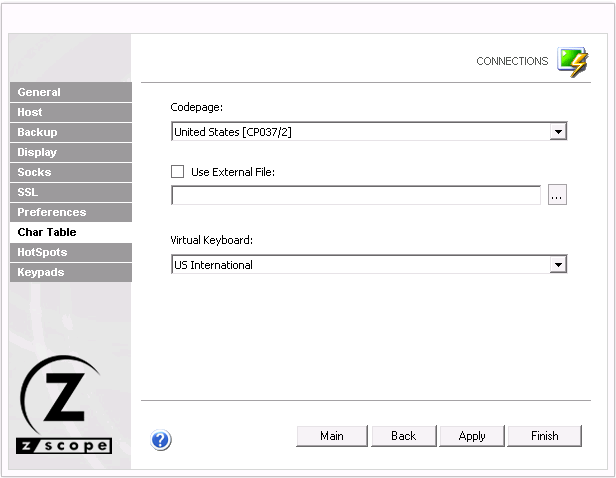

2. Select the 'Char Table' tab.

3. Select the 'Use external file' option and type the full path of the (.ebc) file to use.





Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation External Character Table Settings Codepage File Virtual Keyboard



 4. Click on 'Finish'.



The next time you connect, the specified external conversion table will be loaded for the selected connection.



Read more:

•Internal Conversion Tables
