The RD Web Access Editor is the tool to create, configure and edit Thinfinity® Remote Desktop Server RD Web Access.
The first thing you have to consider is if you want to create an RDP Profile, a Web Link profile or an RD Web Access Profile.
These options are represented by the 'RDP Profile'/'Web Link'/'RD Web Access' radio button.
- An RDP Profile: is a Thinfinity® Remote Desktop Server connection to a machine or an application. Read More.
- A Web Link profile: is a link to an external website of your choice, which will be presented along with the profiles to the user. Read More.
- An RD Web Access: is an administrator profile to populate Microsoft RD Web Access remote apps and desktops links in the user view.
This sections explains the RD Web Access Editor, so if you are here and you want to create an RDP Profile, check the 'RDP Profile' radio button and read about the RDP Profile Editor and if you want to create a Weblink profile, check the 'Web Link' radio button and read about the Web Link Profile Editor.

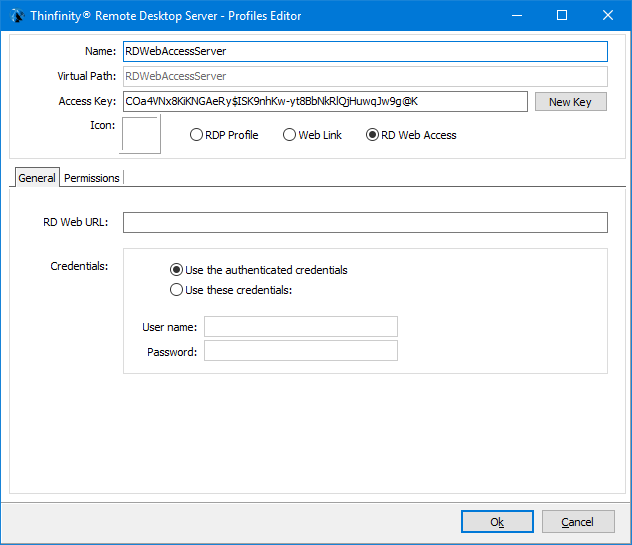

These are the profile properties you can edit:
Name |
Use this field to change the profile name. |
Virtual Path |
The Virtual Path will create a unique URL address for this connection. The complete path will consist of: http(s)://ThinfinityRDPDomain:port/VirtualPath/. The users can then create a web shortcut to this connection in particular and bypass the Thinfinity® Remote Desktop Server web interface. |
Access Key |
Used in combination with Thinfinity® Remote Desktop Server SDK to access this profile. |
New Key |
Change the Access Key to disable access through the current key and provide access through a new one. |
Icon |
Click on the Icon gray box to load an image to be associated with the profile. The image will be presented along with the profile name on the web interface profiles selection. |
Web link / RDP Profile/ RD Web Access |
Select the 'RDP Profile' option to have a regular profile that connects to a remote machine or application through RDP (read about the RDP Profile Editor). Select the 'Web Link' option to make this profile a link to an external web site (read about the Weblink Profile Editor). Select the 'RD Web Access' option to pull the RD Web Access Windows connections into the web interface. |
The properties located inside the tabs will be described throughout the next subtopics.
