Char

Top  Previous  Next

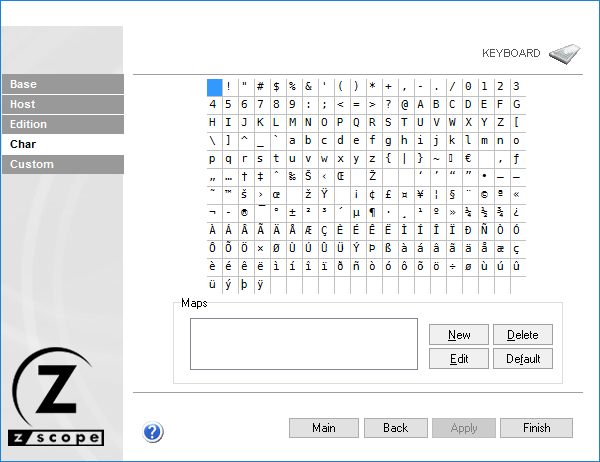

In the 'Char' tab you will find the following parameters:





Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Keyboard Character Table Maps





Character Grid

This is the entire character set. Choose the character you want to re-map.



Maps

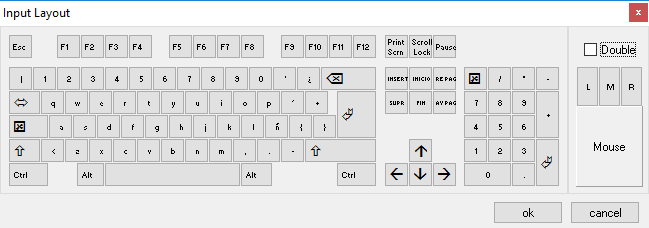

This list contains all keys mapped to the selected character. To map a new key to the selected character, click on the 'New' button to display the on-screen keyboard where you can easily choose a key combination.





Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Keyboard





Click 'Ok' when done. The selected key/s will be added to the list.



If you want to change previously mapped keys, select the key you want to modify from the list and then click on the 'Edit' button. Use the on-screen keyboard to select a new key and then click 'Ok'.



To delete previously mapped keys, select a key from the list and then click on the 'Delete' Button.



To restore the default mapping for the selected key, click on the 'Default' button.
