Editing Macros

Top  Previous  Next

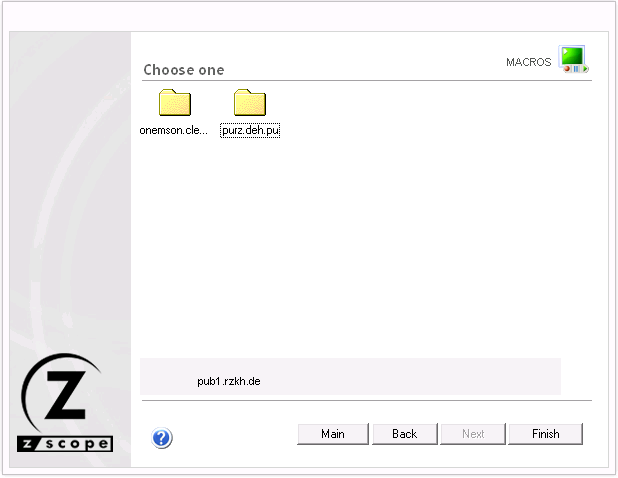

In the 'Macros Management' dialog, you will find a list of the existing connections.





Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Management

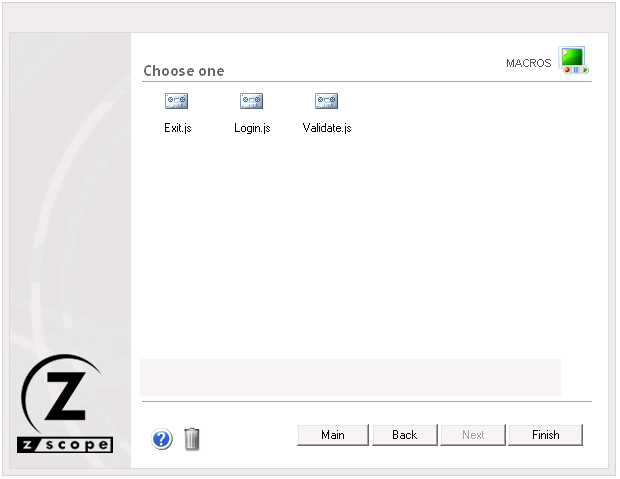

Select a connection and then click on 'Next' to see all Macros defined for that particular connection.





Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Management Connection

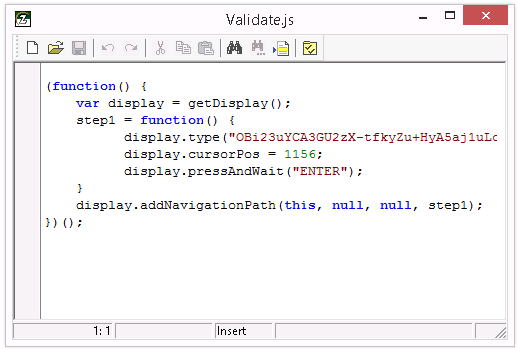

If you want to modify a previously created Macro, select it and then click on 'Next'. You will see the 'Active Script' window which you can use to modify the Macro's code.





Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Edit





Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros New Button

New Macro

Use this button to code a new macro from scratch.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Open Button

Open Macro

Use this button to open an existing macro file (.zsm).



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Save Button

Save Macro

Use this button to save the changes you have made to the macro code. If you are creating a new macro, you will be prompted for a name for the macro file to be saved.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Undo Changes Button

Undo Changes

Use this button to rollback the last changes you have made to the macro code.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Redo Changes Button

Redo Changes

Use this button to recover changes previously discarded with the 'Undo' button.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Cut Button

Cut

Use this button to cut the selected text-area.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Copy Button

Copy

Use this button to copy the selected text-area into the clipboard buffer.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Paste Button

Paste

Use this button to paste text from the clipboard into the screen at the cursor position.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Find Text Button

Find Text

Use this button to open the 'Find Text' window to search for a particular text string in your code.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Find Next Button

Find Next

Use this button after the first matching string of your search has been found to find subsequent matching strings in your code.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Go to Line Number Button

Go To Line Number

Use this button to go to a specific line number in your code.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings Macros Properties Button

Properties

This button opens the 'Properties' window where you can customize several aspects of the Macro Editor.
