Host

Top  Previous  Next

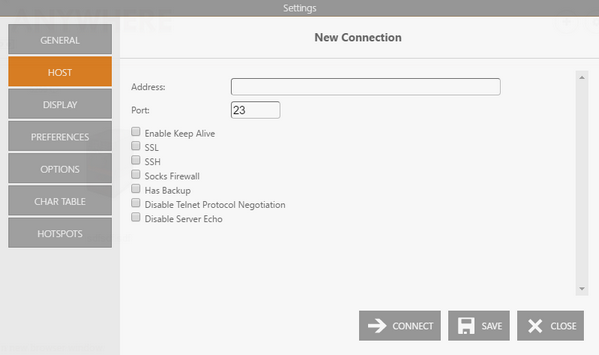

In the 'Host' tab you will find the following parameters:





Web-based HTML5 VT UNIX Terminal Emulation Connection Edit Host Address Port Keep Alive SSL SSH Socks Firewall Backup Telnet Protocol Negotiation Server Echo







Address

URL or IP address of the host computer.



Port

TCP port defined at the host computer for Telnet access.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Note



Default Telnet port number is 23.



Enable Keep Alive

Enables keep-alive mechanism, needed for some Telnet servers to prevent disconnections.



SSL

Enables the SSL (Secure Sockets Layer) protocol for the host.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Note

When you check this option, the 'SSL' tab will automatically appear in the connection settings dialog. See Using SSL. The SSL and SSH options are mutually exclusive.



SSH

Enables the SSH protocol for the host.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Note

When you check this option, the 'SSH' tab will automatically appear in the connection settings dialog. The SSH and SSL options are mutually exclusive.



Socks Firewall

Enables support for Socks firewall.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Note

When you check this option, the 'Socks' tab will automatically appear in the connection settings dialog.





Has Backup

Check this option if you would like to specify an alternate IP for this connection.



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Note

When you check this option, the 'Backup' tab will automatically appear in the connection settings dialog.



Disable Telnet Protocol Negotiation

Check this option if you want to omit the protocol negotiation when connecting.



Disable Server Echo

Check this option if you don't want the server to echo every character it receives.
