Socks

Top  Previous  Next

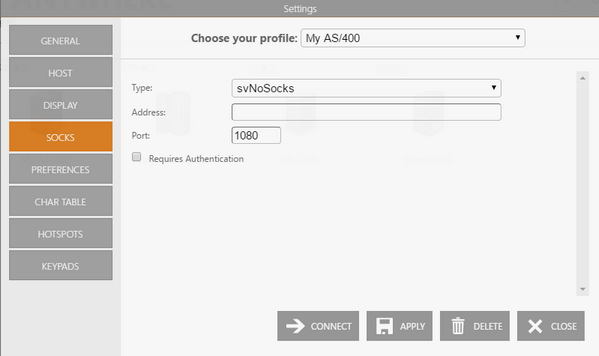

In the 'Socks' tab you will find the following parameters:





Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 Terminal Emulation Connection Edit Socks Type Address Port Authentication



Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Attention



This tab only becomes available when the 'Socks' option is checked in the 'Host' tab.



Type

The type of Socks protocol you will be connecting to. z/Scope provides support for svSocks 4, 4A and 5 protocols.



Address

Enter the IP address of the Socks server.



Port

Enter the port number of the Socks service at the host.



Requires Authentication

When connecting with svSocks4A protocol and higher, you have the option of providing a User ID and a Password for authentication.
