Using an external Character Table

Top  Previous  Next

After saving your own character table to a file, you can load it from within any connection. To do this, follow these steps:

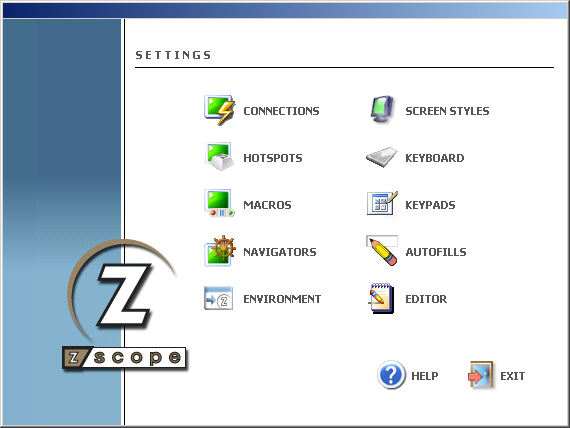

1. Go to the 'Settings' dialog and click on the 'Connections' icon.





TN3270 TN5250 VT Terminal Emulation z/Scope External Character Table Settings





2. Select the 'Char Table' tab.

3. Select the 'Use external file' option and type the full path of the (.ebc) file to use.





TN3270 TN5250 VT Terminal Emulation z/Scope External Character Table Connections



 4. Click on 'Finish'.



The next time you connect, the specified external conversion table will be loaded for the selected connection.
