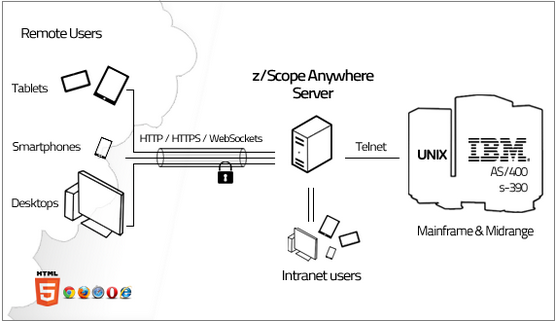

z/Scope Anywhere is based on a 3-tier architecture:
The client:
HTML5-capable Web Browser
The server:
z/Scope Anywhere Server
The host:
IBM Mainframe, Midrange or Unix system.

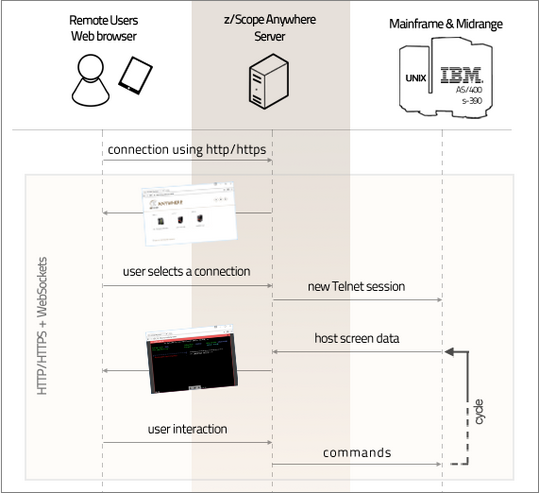

How it Works
The remote user connects to the z/Scope Anywhere server using any HTML5 compliant browser. Once the connection is established the server will interpret and send commands to the specific host/protocol, and send back the results after converting the updated screens to native web structures.

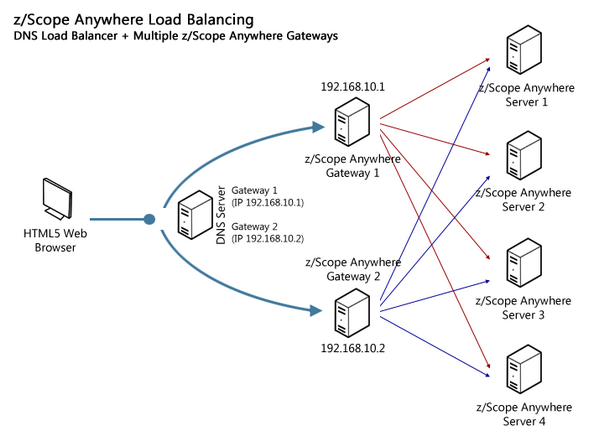

Load Balancing Architectures for z/Scope Anywhere
z/Scope Anywhere can be configured in two different load balancing architectures:
| ▪ | z/Scope Anywhere Load Balancer |
| ▪ | z/Scope Anywhere Load Balancer with a DNS for multiple brokers |
Read more about load balancing.
Requirements
Client
| ▪ | OS independent |
| ▪ | HTML5-compliant Web Browser: |
| o | Internet Explorer 9.0, 10.0, 11.0 |
| o | Edge 10+ |
| o | Firefox 17+ |
| o | Chrome 22+ |
| o | Safari 6.0.1+ |
| o | iOS 5.1.1+ |
| o | Android 2.3, 4.0+ |
Server
| ▪ | Windows XP 32-bit / 64-bit |
| ▪ | Windows Vista 32-bit / 64-bit |
| ▪ | Windows 7 32-bit / 64-bit |
| ▪ | Windows 10 32-bit / 64-bit |
| ▪ | Windows Server 2003 32-bit / 64-bit |
| ▪ | Windows Server 2008 32-bit / 64-bit |
| ▪ | Windows Server 2012 32-bit / 64-bit |
| ▪ | Windows Server 2016 32-bit / 64-bit |
Host
| ▪ | IBM Mainframe |
| ▪ | AS/400 |
| ▪ | Unix |
