Setting up a UNIX/VT/SSH Connection

Top  Previous  Next

This page will guide you through the process of creating a UNIX/VT/SSH connection using the web user interface.



General

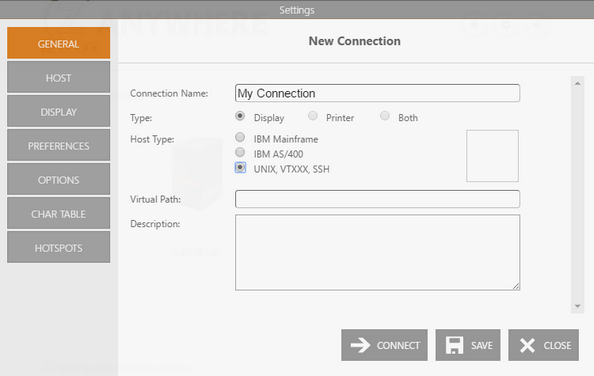

Inform the 'Connection Name' and select 'UNIX, VTXXX, SSH' as the 'Host Type'. You can also better describe the connection by filling the 'Description' field and adding an image to visually identify it.



Web-based HTML5 Terminal Emulation VT100 UNIX Telnet Connection Name Protocol Description





Host



Enter the URL or IP address of the host you want to connect to.

You may check the SSH option. In that case, read the Connection with SSH topic.





Web-based HTML5 Terminal Emulation VT100 UNIX Telnet Connection Host SSH Keep Alive SSL FireWalla





Display Type

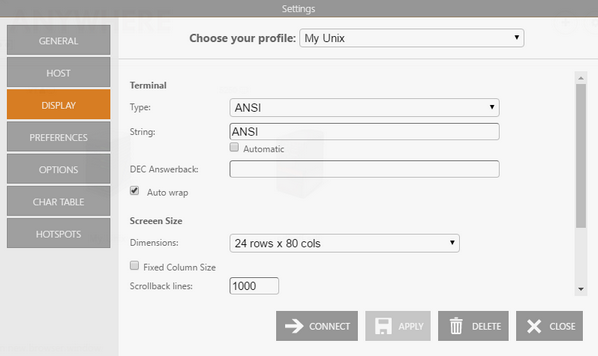

Specify the terminal type and the screen size.



Web-based HTML5 Terminal Emulation VT100 UNIX Telnet Connection Display ANSI String DEC Answerback AutoWrap Dimensions Scrolling





After that, click on 'Apply', 'Save' or 'Connect'.
