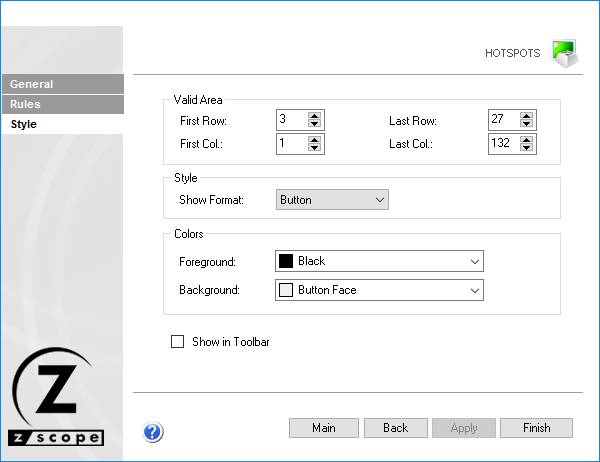

In the 'Style' tab you will find the following parameters:





Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Settings HotSpots Style Valid Area Row Col Format Foreground Background Colors





Valid Area

Specify the screen coordinates for the area that you want the HotSpot to work in.



Style

Choose among several display formats for the HotSpot from the drop-down list:



None: The target string is left unaltered.
Plain: The target string is replaced with a labeled plain button.
Link: The target string is underlined web-link style.
Button: The target string is replaced with a labeled 3D button.
Hover: This works similarly to the 'Link' format, only that the target string is only underlined when the mouse pointer is dragged over it.



Colors

Choose a foreground an a background color for the HotSpot.



Show in Toolbar

Check this option if you want HotSpots to appear in a dynamic toolbar in the Emulation Display. See Using HotSpots.
