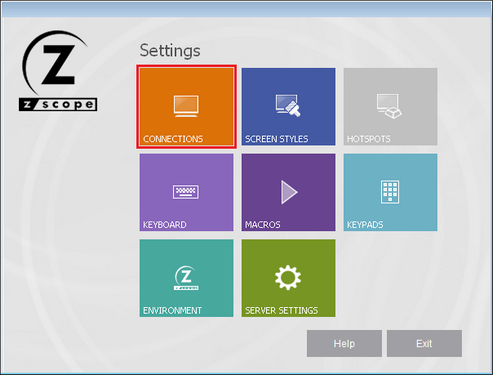

In order to create or edit a shared connection you have to open the Configuration Manager and click on the "Connections" button:





Web-based HTML5 TN3270 TN5250 AS/400 IBM Mainframe Unix Telnet Terminal Emulation Settings

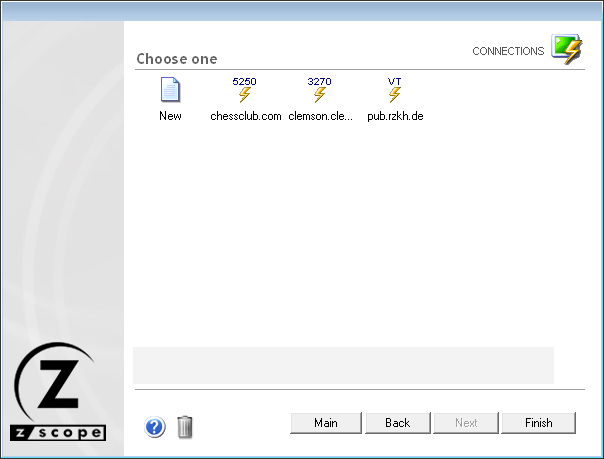

The Connections management dialog shows you a list of the existing Connections.



Web-based HTML5 TN3270 TN5250 AS/400 IBM Mainframe Unix Telnet Terminal Emulation Settings Connection Management



Creating a shared connection:



Use the 'New' icon to create a new Connection from scratch. Double-click on the 'New' icon and the Connection Wizard will be launched.



Modifying a shared connection:



To modify the attributes of a previously created Connection, select this connection using the mouse and then click on the bottom 'Next' button, or just simply double-click on it.

After you select a connection and click on 'Next', you will be presented with a dialog in which you will have access to all the attributes of the Connection you are editing.



For a detailed description each connection parameter, read the next topics:



UNIX/VT Connections
Mainframe/AS400 Connections
