Display

Top  Previous  Next

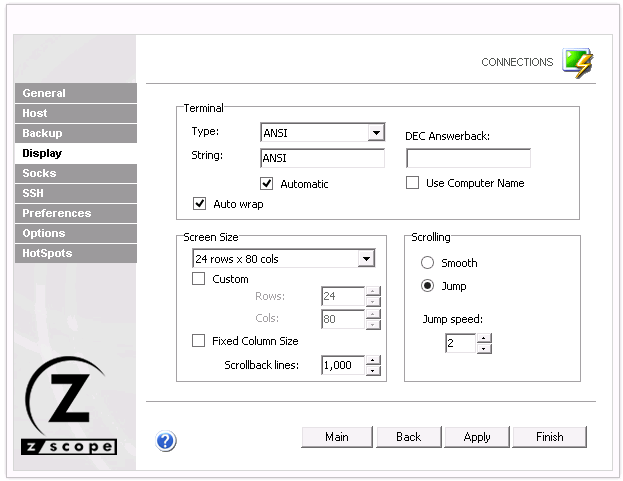

In the 'Display' tab you will find the following parameters:





Web-based HTML5 VT100 Unix Telnet Terminal Emulation Settings Display Terminal Type String ANSI DEC Answerback Computer Name Autowrap Screen Size rows columns Fixed Scrolling Smooth Jump Speed





Terminal



Type / String

Specify the type of terminal to emulate, which is not necessarily the same that is informed to the server. To inform the server a different type of terminal than the one emulated, use the 'String' field. To automatically detect the type of terminal, check the 'Automatic' option.



DEC Answerback

Here you can specify the DEC 'Transmit answerback message' control character. Check the 'Use Computer Name' Checkbox to assign the computer's name to the DEC Answerback field.



Auto Wrap

Check this option if you want the text lines to be wrapped when the terminal is resized.





Screen Size



Rows/Cols

Specify the number of rows and columns to de displayed. Choose from the options provided or check the 'Custom' option and type in the numbers.



Fixed Column Size

Check this option to display a horizontal scrollbar instead of resizing the font.



Scrollback lines

Specify the number of rows to keep in the buffer so they can be scrolled with the vertical scrollbar.





Scrolling



Smooth/Jump

Select a method for scrolling.



Jump speed

Specify the number of rows to be scrolled when the scrolling method is set to 'Jump'.
