Gateway Manager

Top  Previous  Next

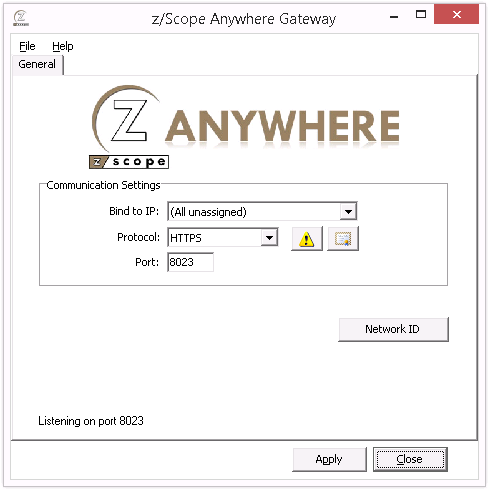

The Gateway Manager is a tool to configure gateway options.



Install z/Scope Anywhere and look for the z/Scope Anywhere Gateway' shortcut in the Start Menu.









Its main menu has two sub-menus:



File Menu





Save

Click to save any change.



Close Save

Click on this option to exit the z/Scope Anywhere Gateway manager.



Help Menu





About z/Scope Anywhere Gateway...

Click on the 'About...' option to see the application version and build number.


General tab options


Bind to IP

Use this option to restrict access to the service through one specific IP. The "All unassigned" option allows access through all the possible IP's for the computer where z/Scope Anywhere is installed.



Protocol

Choose between the http and https protocol. The https protocol uses SSL. Hence, it's more secure.



Press this button to configure HTTP error responses



Press this button to access the options for replacing the default installed certificate with your own. Read more about this subject on the topic Managing the SSL Certificate.



Port

Choose the port number for this computer to be accessed.



Network ID

The network ID identifies this installation. This Network ID must be matched by all the servers and gateways participating in the load balancing scheme.

Press this button to see and/or change the Network ID. The default value is a random string but you can change it to something more descriptive.



Read more:

Scaling and Load Balancing
