Scaling and Load Balancing Configurations

Top  Previous  Next



If you arrive to the conclusion that your z/Scope Anywhere environment would benefit from using load balancing, you can choose between two possible architectures. This decision is an essential step in planning the hardware scheme and configuring the system to work in a distributed way.

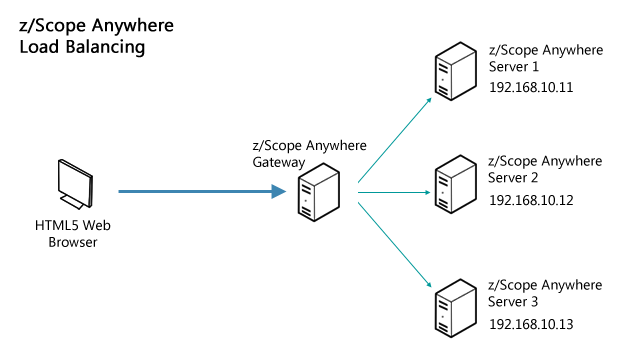

Scenario 1: One Gateway and multiple Servers

In this simple scenario, a single Gateway distributes the connection load between a number of Servers.

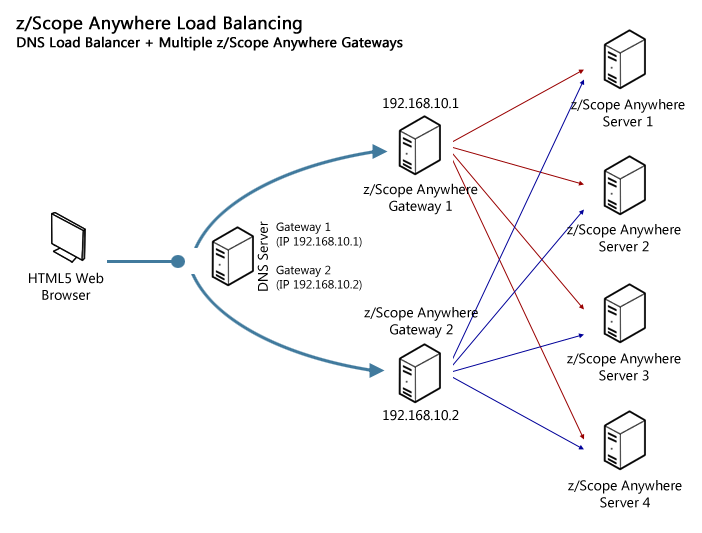

Scenario 2: Multiple Gateways and multiple Servers



This second scheme is composed by multiple Servers, multiple Gateways and the DNS Server, its domain name associated to all the available Gateways' IPs.
