Socks

Top  Previous  Next

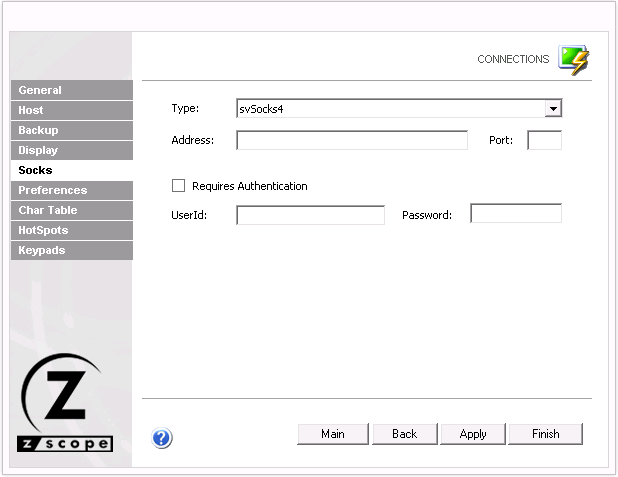

In the 'Socks' tab you will find the following parameters:





Web-based HTML5 TN3270 TN5250 Terminal Emulation Settings Socks Type Address Port Authetnication UserID Password





Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation Attention



This tab only becomes available when the 'Socks' option is checked in the 'Host' tab.



Type

Indicates the type of Socks protocol you will be connecting to. z/Scope provides support for svSocks 4, 4A and 5 protocols.



Address

In this field you must enter the IP address of the Socks server.



Port

In this field you must enter the port number of the Socks service at the host.



Requires Authentication

When connecting with svSocks4A protocol and higher, you have the option of providing a User ID and a Password for authentication.



UserId

In this field you must enter your User ID.



Password

In this field you must enter your Password.
