Editing Macros

Top  Previous  Next

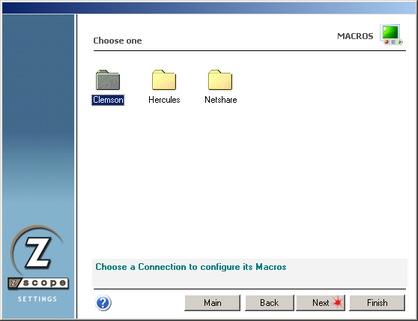

In the 'Macros Management' dialog, you will find a list of the existing connections.





TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Settings Macros Edit Management

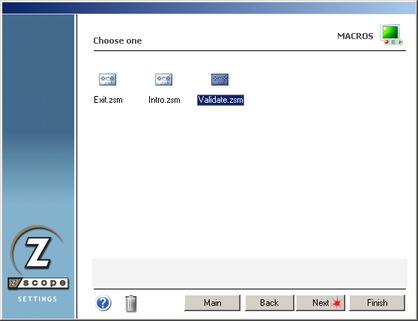

Select a connection and then click on 'Next' to see all Macros defined for that particular connection.





TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Settings Macros Edit Management

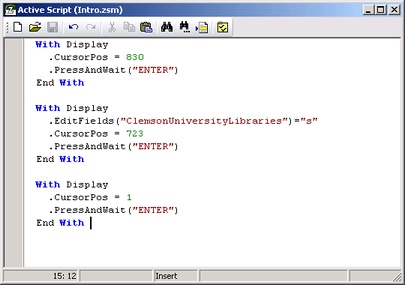

If you want to modify a previously created Macro, select it and then click on 'Next'. You will see the 'Active Script' window which you can use to modify the Macro's code.





TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macros Active Script Edit





TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit New Button

New Macro

Use this button to code a new macro from scratch.



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Open Button

Open Macro

Use this button to open an existing macro file (.zsm).



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Save Button

Save Macro

Use this button to save the changes you have made to the macro code. If you are creating a new macro, you will be prompted for a name for the macro file to be saved.



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Undo Changes Button

Undo Changes

Use this button to rollback the last changes you have made to the macro code.



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Redo Changes Button

Redo Changes

Use this button to recover changes previously discarded with the 'Undo' button.



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Cut Button

Cut

Use this button to cut the selected text-area.



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Copy Button

Copy

Use this button to copy the selected text-area into the clipboard buffer.



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Paste Button

Paste

Use this button to paste text from the clipboard into the screen at the cursor position.



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Find Text Button

Find Text

Use this button to open the 'Find Text' window to search for a particular text string in your code.



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Find Text Next Button

Find Next

Use this button after the first matching string of your search has been found to find subsequent matching strings in your code.



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Go To Line Number Button

Go To Line Number

Use this button to go to a specific line number in your code.



TN3270 IBM Mainframe TN5250 AS400 Terminal Emulation z/Scope Macro Script Edit Properties Button

Properties

This button opens the 'Properties' window where you can customize several aspects of the Macro Editor.





Related Topics



Using Macros
