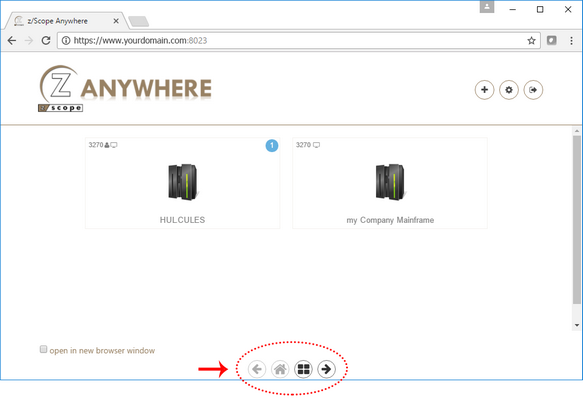

On the main page bottom you will find the Navigation Toolbar:
![Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Start Page Toolbar Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Start Page Toolbar](web_mainpage_listed_sessions_zoom61.png)
The Navigation Toolbar includes:
![Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Start Page Toolbar Show Hide Button Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Start Page Toolbar Show Hide Button](backnexttoolbarbutton.png)
|
Previous / Next
This button goes back and forth the active sessions and the home connections page. You can also use it to see more connections when displaying them as a grid.
|
![Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Start Page Toolbar Open Sessions Button Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Start Page Toolbar Open Sessions Button](hometoolbarbutton.png)
|
Home
This button takes you to the home page where you can see the connections.
|
![Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Start Page Toolbar Open Sessions Button Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Start Page Toolbar Open Sessions Button](gridtoolbarbutton.png)
|
Connection Views
Press this button to display and choose a connection view. You can choose: Coverflow, Gallery and Grid.
This button shows a grid with up to four active sessions, allowing you to easily work on different connections at a time while seeing all of them at the same time.
Click on each session to work on it. When there are more than 4 active sessions, you can use the previous / next buttons to see a different group of connections.
|
![Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Start Page Toolbar Open Sessions Button Web-based HTML5 TN3270 IBM Mainframe TN5250 IBM AS/400 VT UNIX Terminal Emulation Start Page Toolbar Open Sessions Button](navigation_restore.png)
|
Restore
When you are in Coverflow, Gallery or Grid mode, press this button to show the classic, full screen connection view.
|

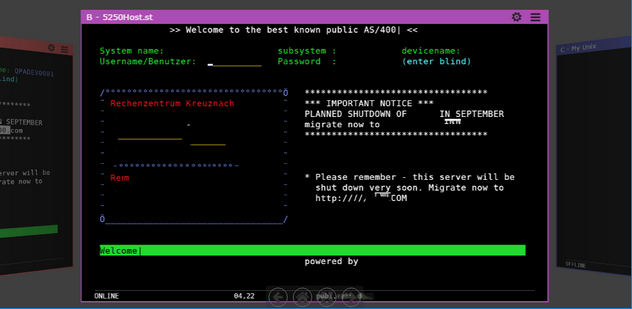

Coverflow mode:
![](connectionview_coverflow_zoom64.png)

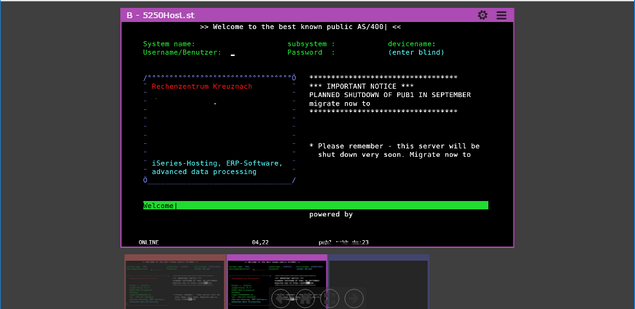

Gallery Mode:
![](connectionview_gallery_zoom64.png)

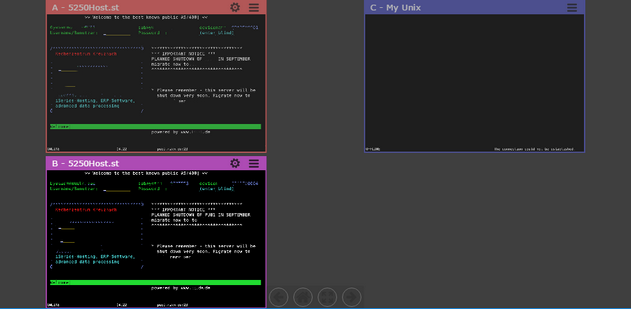

Grid Mode:
![](connectionview_grid_zoom64.png)
