ZMODEM

Top  Previous  Next

To add a new ZMODEM File Transfer Job to the Queue, follow these steps:



1. Open the Connection to the host you want to make a file transfer with.



2.        Click on the File Transfer bottom context menu item.





Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation Manager Queue ZMODEM File Transfer Button

File Transfer

Click to have access to the "File Transfer" Manager.





3. If you are going to make an upload, remember to first upload the file into z/Scope Anywhere Server, on the Files tab.



4. Go to the Queue tab and click on the Add button, to insert a new job to the Static Queue.

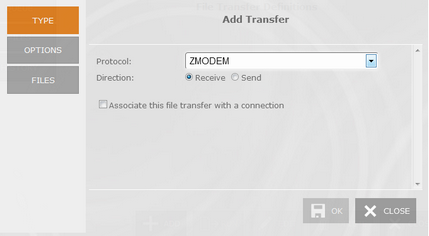

Type tab:



Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation File Transfer Manager Queue ZMODEM Type Protocol Direction Associate with Connection





Protocol

Select the ZMODEM protocol.



Direction

The Direction indicates if you are setting a download (RECEIVE) from the host to z/Scope Anywhere Server, or an upload (SEND) from z/Scope Anywhere Server to the host.



Associate this file transfer with a connection

This option allows you associate the File Transfer job with one specific connection. This job will only be shown on the selected connection.

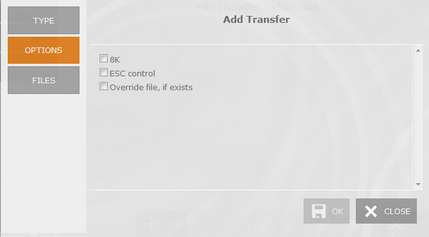

Options tab:



Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation File Transfer Manager Queue ZMODEM Options 8K ESC Control Override





8K

Check this option to enable 8K blocks.



ESC control

Check this option if you would like to escape all control chars. Unchecked, control chars will not be transformed but taken as part of the file.



Override file, if exists

Check this option if you would like the transferred file to overwrite an existing file in case they have the same name.

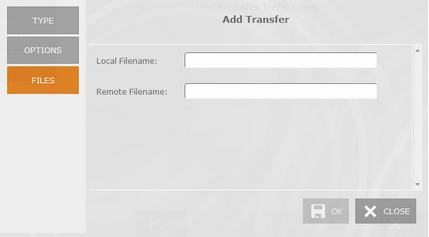

Files tab:



Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation File Transfer Manager Queue ZMODEM Filename Local Remote





Local Filename

In this field you must type a name for the file stored at the remote host.



Remote Filename

In this field you must type a name for the file stored on z/Scope Anywhere Server. All the available files are listed on the Files tab.





Once you finish to set up the file transfer job, click on the "OK" button and it will be shown in the Static Queue.

In the future, whenever you need to change the File Transfer settings you can select this job and click the Queue 'Edit' button.
