To add a new ZMODEM File Transfer Job to the Queue, follow these steps:



1. Open the Connection to the host.



2.        Click on the 'File Transfer' Connection View Menu option.





Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation FTP File Transfer Button

File Transfer

Opens the File Transfer Manager.





3. If you want to upload files to the server, remember to first upload the file to z/Scope Anywhere Server in the Files tab.



4. Go to the Queue tab and click on the 'Add' button.

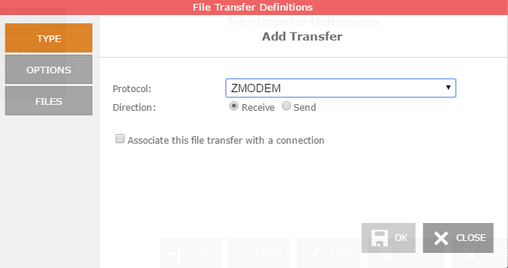

Type Tab:



Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation File Transfer Manager Queue ZMODEM Type Protocol Direction Associate with Connection





Direction

Indicates if you will be downloading (Receive) from the host to z/Scope Anywhere Server, or uploading (Send) from z/Scope Anywhere Server to the host.



Associate this file transfer with a connection

This option allows you associate the File Transfer job with a specific connection. The job will only be shown on the selected connection.

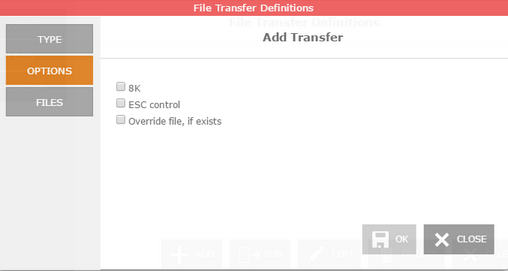

Options Tab:



Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation File Transfer Manager Queue ZMODEM Options 8K ESC Control Override





8K

Enables 8K blocks.



ESC control

Escapes all control chars. Unchecked, control chars will not be transformed but interpreted as part of the file.



Override file, if exists

Transferred file overwrites an existing file in case they have the same name.





Files Tab:



Web-based HTML5 TN3270 TN5250 VT100 Terminal Emulation File Transfer Manager Queue ZMODEM Filename Local Remote





Local Filename

Type a name for the file stored in the remote host.



Remote Filename

Type a name for the file stored in z/Scope Anywhere Server. All the available files are listed on the Files tab.





Once you finish the configuration of the file transfer job, click on the 'OK' button and it will be shown in the Static Queue.

In the future, whenever you need to change the File Transfer settings you can select this job and click the Queue 'Edit' button.
